Applicable materials:Cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics etc.
Application scope:Cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics etc.

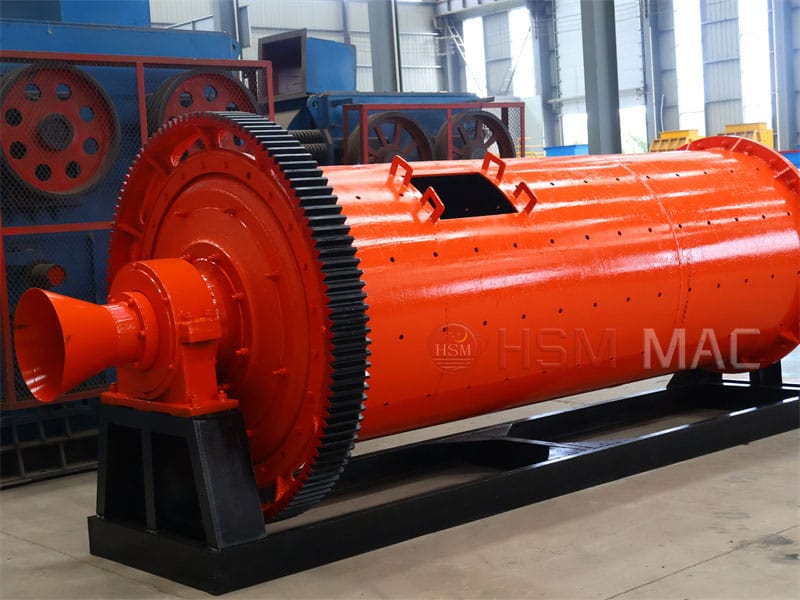

Ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics etc, it can grind various ores and other materials with dry type and wet type.

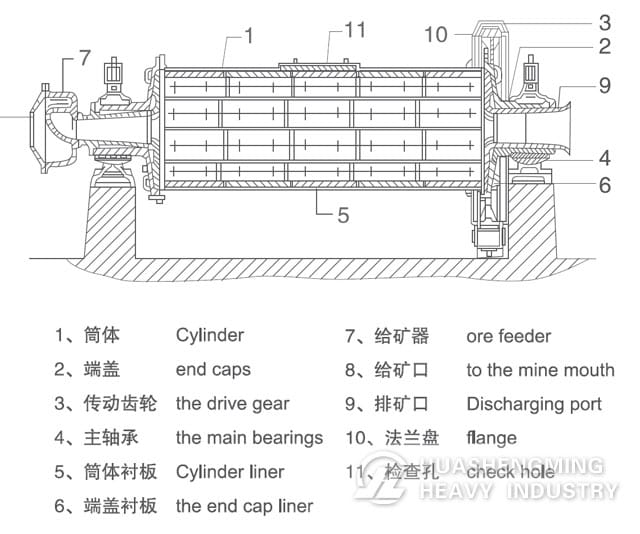

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
| Model | Cylinder?Speed (r/min) |
Ball?Charge (t) |
Feed?Particle Size?(mm) |
Discharge Size?(mm) |
Output (t/h) |
Motor?Power (kw) |
Weight (t) |
| 900*1800 | 38 | 1.5 | <=20 | 0.075-?0.89 | 0.65?–?2 | 18.5 | 3.6 |
| 900*2100 | 38 | 1.3-1.4 | <=15 | 0.075-?0.83 | 0.7?–?3.5 | 18.5 | 3.9 |
| 900*3000 | 38 | 2.7 | <=20 | 0.075-?0.89 | 1.1?–?3.5 | 22 | 4.5 |
| 1200*2400 | 32 | 3.8 | <=25 | 0.075?–?0.6 | 1.5?–?4.8 | 30 | 11.5 |
| 1200*2800 | 32 | 3.3-3.5 | <=25 | 0.075?–?0.6 | 2?–?6 | 30 | 13 |
| 1200*4500 | 32 | 7 | <=25 | 0.074?–?0.4 | 1.6?–?5.8 | 45 | 13.8 |
| 1500*3000 | 27 | 8 | <=25 | 0.074?–?0.4 | 2?–?5 | 75 | 17 |
| 1500*3500 | 27 | 6.75-6.4 | <=25 | 0.075?–?0.4 | 3?–?7 | 75 | 17.5 |
| 1500*4500 | 27 | 14 | <=25 | 0.074?–?0.4 | 3.5?–?12 | 110 | 21 |
| 1500*5700 | 27 | 15 | <=25 | 0.074?–?0.4 | 3.5?–?8 | 115 | 24.7 |
| 1830*3000 | 24 | 18 | <=25 | 0.074?–?0.4 | 4?–?10 | 130 | 28 |
| 1830*3600 | 24 | 10.6-11.35 | <=25 | 0.075?–?0.4 | 5?–?22 | 130 | 33.5 |
| 1830*7000 | 24 | 25 | <=25 | 0.074?–?0.4 | 7.5?–?17 | 210 | 36 |
| 2100*3600 | 22 | 14-15.2 | <=25 | 0.075?–?0.4 | 15?–?36 | 370 | 46.8 |
| 2200*5500 | 21 | 30 | <=25 | 0.074?–?0.4 | 10?–?22 | 210 | 48.5 |
| 2200*6500 | 21 | 31 | <=25 | 0.074?–?0.4 | 14?–?26 | 380 | 52.8 |
| 2200*7500 | 21 | 33 | <=25 | 0.074?–?0.4 | 16?–?29 | 380 | 56 |
| 2400*3000 | 20.6 | 15.5-16.6 | <=25 | 0.075?–?0.4 | 22?–?24 | 245 | 59 |
| 2400*4500 | 21 | 30 | <=25 | 0.074?–?0.4 | 8.5?–?60 | 380 | 65 |
| 2700*3600 | 20.6 | 39 | <=25 | 0.074?–?0.4 | 12?–?70 | 400 | 91.3 |
| 2700*4000 | 20.7 | 40 | <=25 | 0.074?–?0.4 | 12?–?80 | 400 | 94 |
| 2700*4500 | 20.7 | 48 | <=25 | 0.074?–?0.4 | 12?–?90 | 430 | 102 |
| 3200*4500 | 18 | 65 | <=25 | 0.075?–?0.4 | ?25-130 | 800 | 137 |
