Applicable materials:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.
Application scope:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.

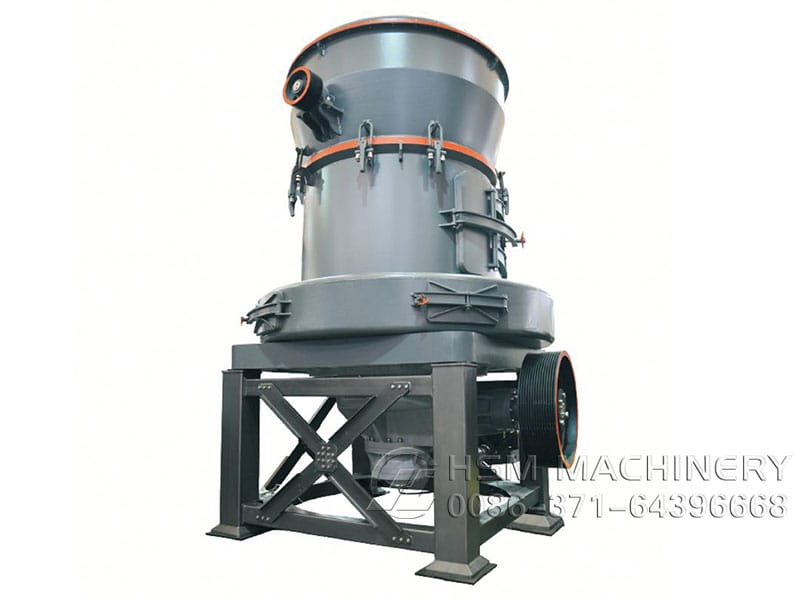

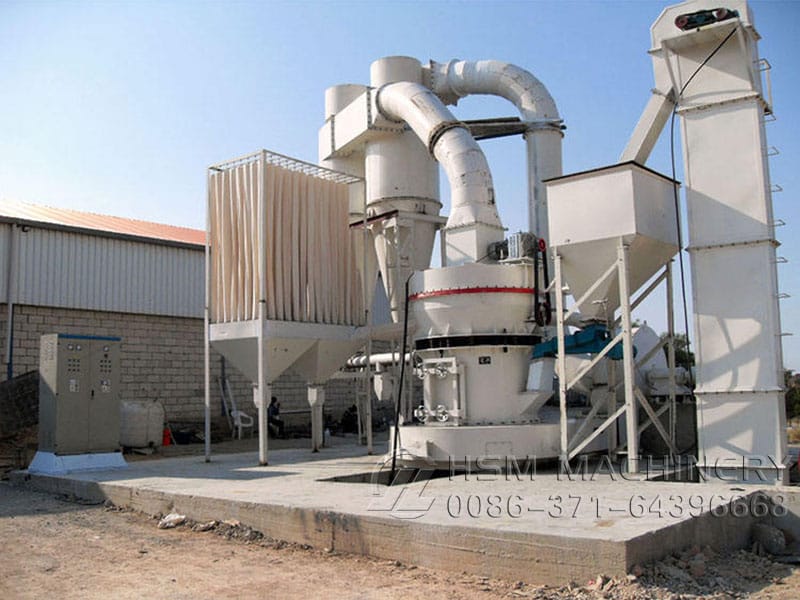

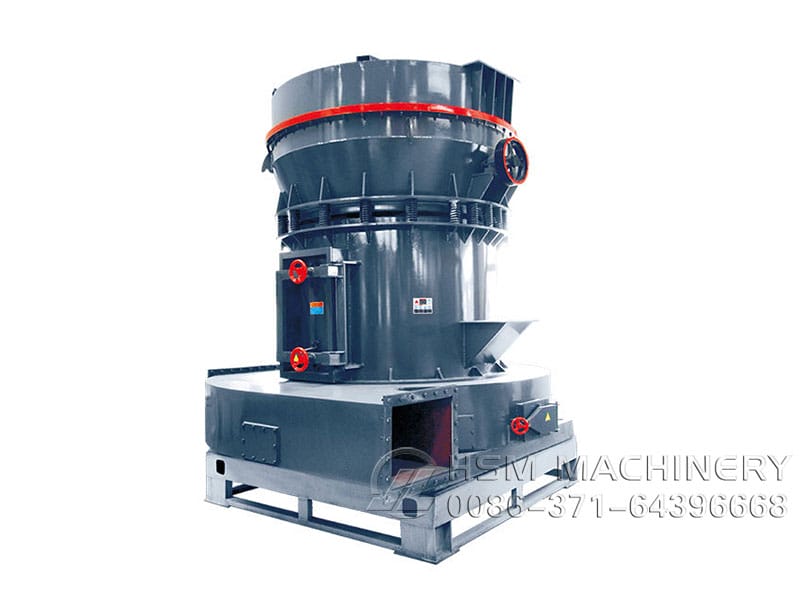

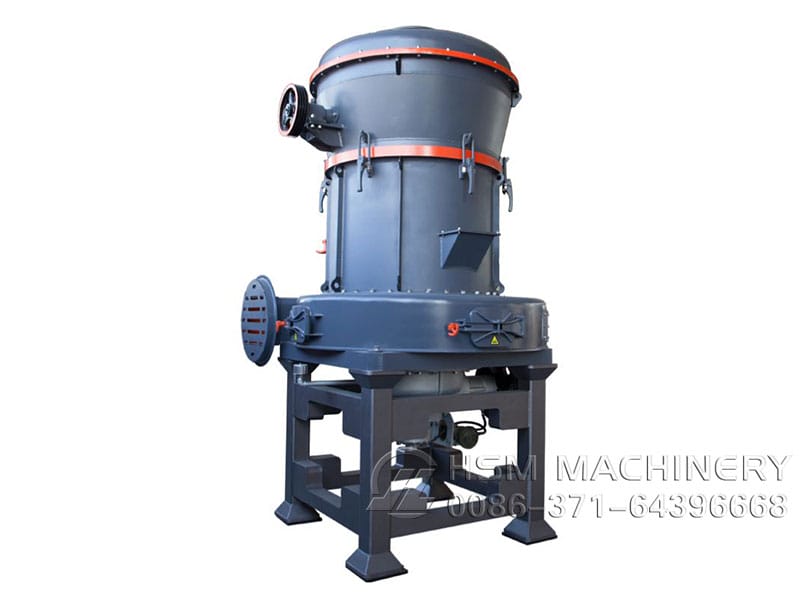

Raymond mill is a traditional mill type, which is to grind non-flammable and non-explosive materials in the fields of building materials, mining, metallurgy and chemical industry with hardness less than 7 in Moh’s scale and humidity less than 6 percent, such as: limestone, calcite, barite, dolomite, marble, talcum, gypsum, kaoline, iron ore, glass, fireproof materials, heat preservation materials, chemical materials and so on( about 300 kinds of material). The granularity of the end products can be adjusted from 30 to 325 meshes.
| Type | Roll Grinding Number |
Maximum Feed?Size (mm) |
Output?Size (mesh) |
Output?of 8?hours |
Motor Power (kw) |
Blower Power (kw) |
Analysis Machine Power(kw) |
Overall Dimension (mm) |
| 3R1510 | 3 | 10 | 80-325 | 0.3-1.2 | 7.5 | 5.5 | 1.1 | 3200*2100*4500 |
| 3R2115 | 3 | >20 | 80-325 | 0.4-1.6 | 15 | 11 | >2.2 | 4100*3300*4500 |
| 3R2615 | 3 | 20 | 80-325 | 0.5-2.7 | 18.5 | 15 | 2.2 | 4300*3500*5100 |
| 3R2715 | 3 | 20 | 80-325 | 0.7-3 | 22 | 18.5 | 2.2 | 5300*4100*5200 |
| 4R3016 | 4 | 20 | 80-325 | 0.8-5 | 30 | 30 | 2.2 | 5300*4100*5200 |
| 4R3015 | 4 | 25 | 80-325 | 1.0-4 | 30 | 22 | 2.2 | 5500*4300*5400 |
| 4R3216 | 4 | 25 | 80-325 | 1.0-8 | 45 | 30 | 5.5 | 7100*5900*7900 |
| 4R3220 | 4 | 28 | 80-400 | 1-10 | 45 | 37 | 5.5 | 8000*6000*9500 |
| 5R4119 | 5 | 30 | 80-400 | 5-10 | 75 | 75 | 7.5 | 9200*7250*9700 |
| 6R4427 | 6 | 35 | 80-400 | 9-15 | 132 | 132 | 11 | 12550*5700*8355 |
