Applicable materials:Stone, sand, coal, concrete, cement, gravel, fertilizer, mineral ore, limestone, coke, sawdust, wood chip, bulk material, grain, corn flakes, carbon black, component part etc.
Application scope:Stone, sand, coal, concrete, cement, gravel, fertilizer, mineral ore, limestone, coke, sawdust, wood chip, bulk material, grain, corn flakes, carbon black, component part etc.

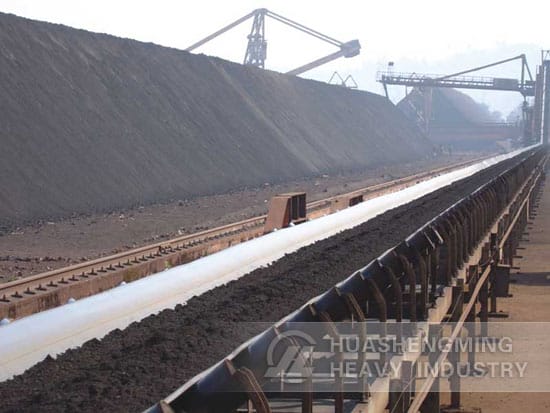

The belt conveyor is mainly composed of rack, conveying belt, belt roller, tension device and driving device. The rack is connected with excellent steel plate, and there are belt roller and carrier roller for driving and supporting the conveying belt, and there are two driving methods: reduction motor drive and motorized pulley drive.
| Belt?width (mm) |
Conveying?length(m) Power(kw) |
Conveying?speed (m/s) |
Conveying?amount (t/h) |
||
| 400 | <=12 3 |
12-20 2.2-4 |
20-25 3.5-7.5 |
1.3-1.6 | 40-80 |
| 500 | <=12 3 |
12-20 4-5.5 |
20-30 5.5-7.5 |
1.3-1.6 | 78-191 |
| 650 | <=12 4 |
12-20 5.5 |
20-30 7.5-11 |
1.3-1.6 | 131-323 |
| 800 | <=6 4 |
6-15 5.5 |
15-30 7.5-15 |
1.3-1.6 | 278-546 |
| 1000 | <=10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.3-2.0 | 435-853 |
| 1200 | <=10 7.5 |
10-20 11 |
20-40 15-30 |
1.3-2.0 | 655-1284 |
| 1400 | <=10 11 |
10-20 18.5 |
20-40 22-37 |
1.3-2.0 | 893-1745 |
| 1600 | <=10 15 |
10-20 22 |
20-40 30-45 |
1.3-2.0 | 1069-2195 |
