Product description

What is a double roller crusher for gravel plant?

The Double roller crusher for gravel plant is a common crushing equipment, which is mainly composed of two rollers arranged in parallel. Its working principle is to use the rotation of the roller to clamp the material between two rollers for crushing and grinding. The double-roller crusher for sand and gravel plants is usually used to crush medium-hard materials, such as limestone, quartz stone, etc., and plays the role of coarse crushing and medium crushing in the sand and gravel production line. This equipment has the characteristics of simple structure, convenient operation and low energy consumption. It is widely used in the crushing process of mining, building materials, metallurgy and other industries.

Applicable materials

Crushing and sand making work of river pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, bluestone, mountain stone, limestone, weathered sand, diabase, granite, basalt and other materials.

Why choose Huashengming

1. The Double roller crusher for gravel plant is better than the hammer sand making machine and does not need to replace wearing parts.
2. The sand has full grain shape, reasonable gradation, low over-grinding rate and high output.
3. Double roller crusher for gravel plant have advantages over hammer crushers and impact crushers. The average service life of the roller sleeve is more than 2 years.
4. Huashengming's high-chromium manganese steel wear-resistant material containing rare metal roller skin has been applied for in my country, the discharge particle size can be adjusted and has been applied for in my country, and the rock crusher roller has been applied for in my country.

Model distinction

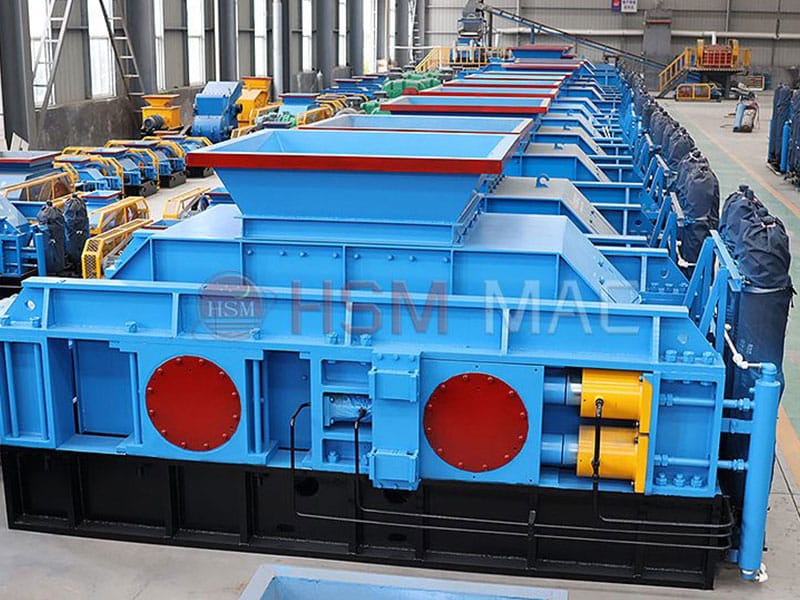

Live shooting



Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

Rock breaker sand making machine operates through rollers. The mountain stone put into the machine through the inlet, are crushed by the squeezing between the rollers. The discharge size can be controlled by adjusting the gap between the two rollers. If the gap becomes larger, the discharged size becomes larger. While the gap becomes smaller by compressing spring, the discharge size also becomes smaller.

Technical parameters

•

•
•
•
