Product description

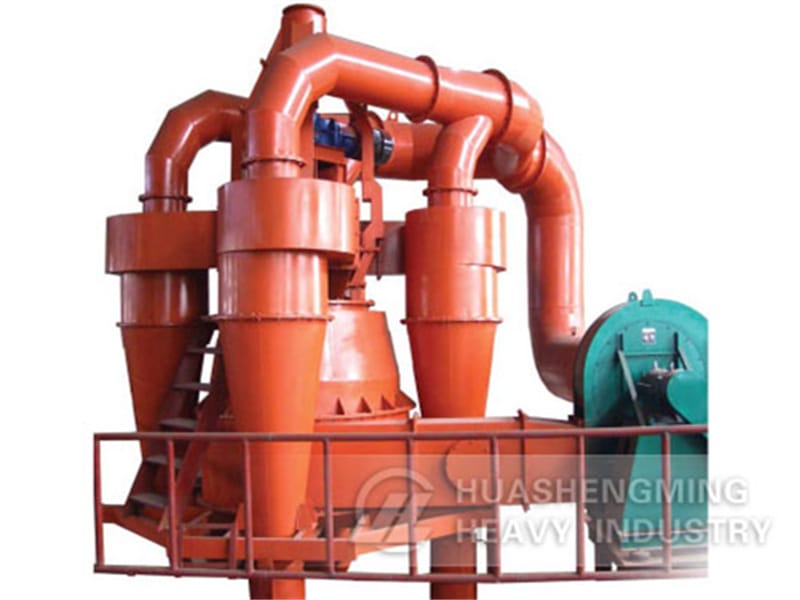

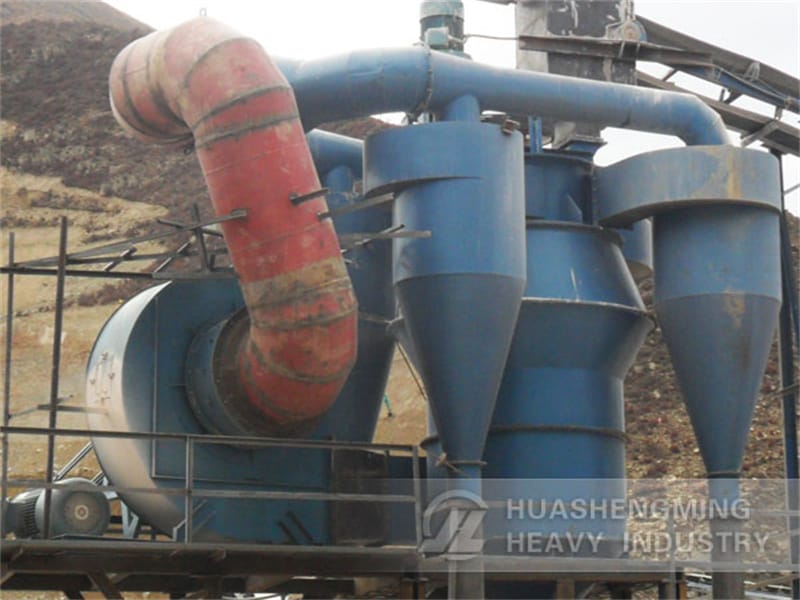

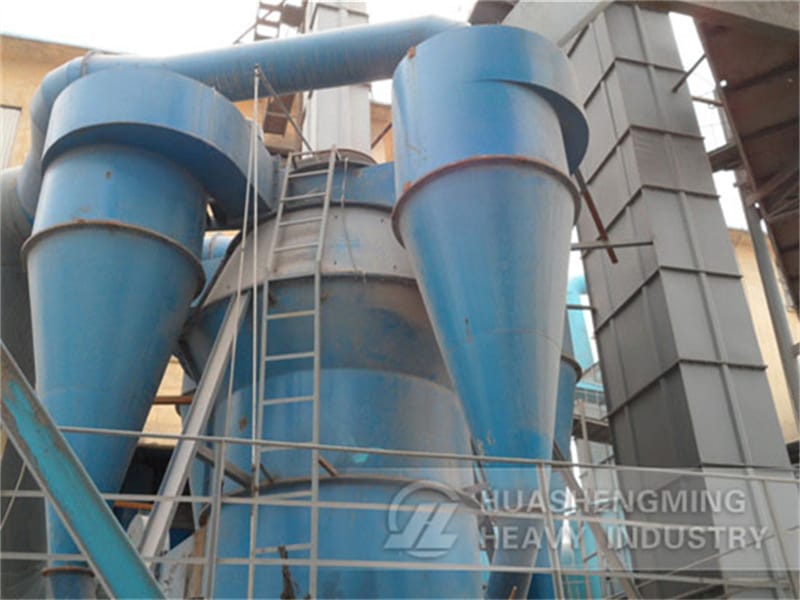

Powder Separator have the function of pre-separation of dynamic powder separator, O-SPEA eddy current cage separation, rotor separator, cyclone separator, bypass cleaning coarse dust separation. It is our company’s self-development advanced technology powder separator equipment based on the advanced technology of powder separator. It has the features of high efficiency for choosing powder, energy-saving effect.

•
•
•
•

// Start For Horizontal Slider

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

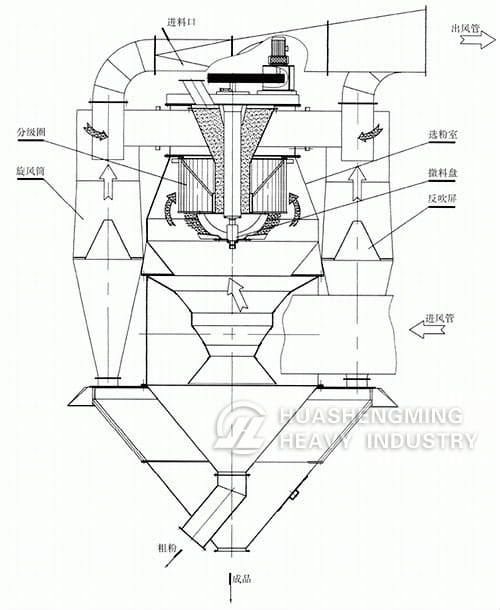

The material in the Silo will fall down into the Feeding tube evenly through the Vibrating Feeder, and then fall onto the upper scattering plate, after that will scatter on the gap between the roller and ring. The material into the inner wall of the rollers will be reground, and then fall down onto the lower scattering plate. And the fine powder conforms to the standard will be discharged into the dispersive Twin-pipe Cyclone Separator, and then be discharged. And the massiveness will enter the grinding wall to be reground. The air current with the dust will enter into the lower part of the Pulse Bag Dust Catcher, and then be discharged through the Rotational Discharging Device after filtering dust.

Technical parameters

•

•
•
•
