The Trommel Screen is widely used for screening and classifying mineral materials,?such as metallurgy, mining, chemical, coal, building materials, abrasives, and other industries.
1. Gold Mining: suitable for screening and washing alluvial gold, placer gold, sand gold, etc.

2. Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.

3. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.

4. Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.

5. Metallurgy, construction and other industries

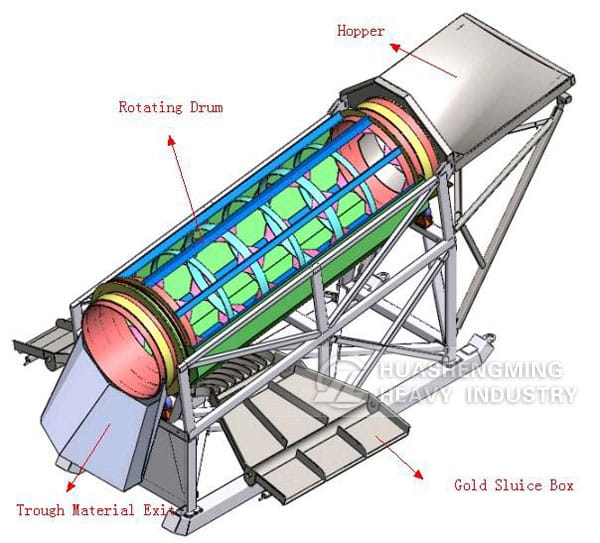

1) Input of raw materials through heavy equipment

Raw materials inputted through the entrance of the hopper will be pushed into the Gold trommel by the strong water pressure of the shower equipped in the hopper.

2) Selection and cleaning of raw materials

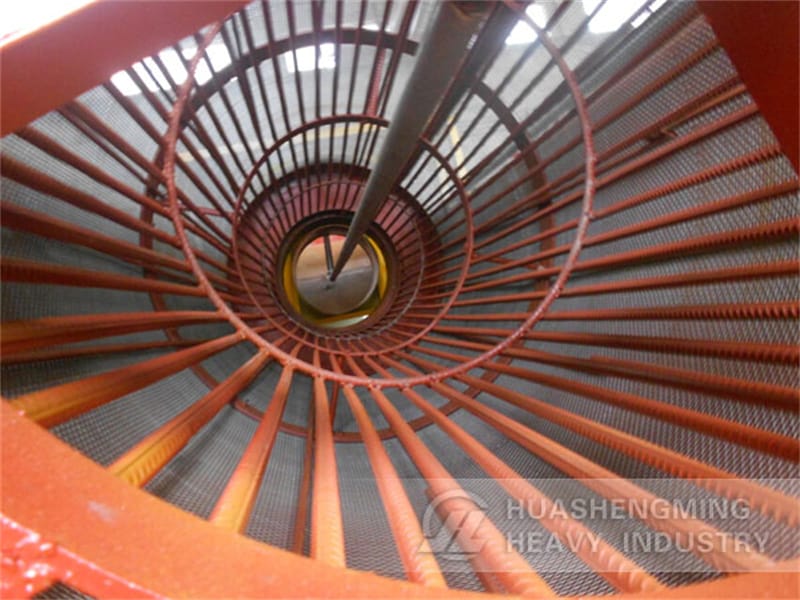

Raw materials will be cleaned and selected by the rotation of gold trommel screen and, by watering of the shower inside, run into the gold dust separate panel.

3) Collecting of gold dust separated

Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.
