Product description

What is Roller Crusher Machine

Roller Crusher Machine are suitable for coarse and medium crushing of brittle blocky materials in industries such as cement, chemical industry, electricity, mining, metallurgy, building materials, refractory materials, and coal mines. They have a large feed particle size and adjustable discharge particle size, and can crush materials with compressive strength ≤160MPa.

Especially in the coal industry, Roller Crusher are used to crush raw coal.After iron removal and impurity removal, there is no need to remove gangue, and crushing can be carried out directly. The crushed material has uniform particle size and low over-crushing rate, thus simplifying the coal selection process and reducing investment and production costs.

Roll crushers are suitable for the following industries:

Mining and metallurgy: crush iron ore, copper ore, etc., to provide raw materials of appropriate particle size for beneficiation and smelting.

Building materials and chemicals: process limestone, granite, quartz sand, etc., for use in cement and glass production.

Coal and environmental protection: directly crush raw coal (no need for desliming), simplify the coal beneficiation process; can also process domestic waste and industrial waste.

Special material processing: such as precision rolling of battery anodes, graphene membranes, etc., reflecting their multifunctionality.



Why Choose Huashengming?

1.Superior to Hammer Crushers: No need for frequent replacement of vulnerable parts.

2.High-Quality Sand: Produces well-rounded sand particles with rational grading, low over-crushing rate, and high output.

3.Advantages Over Hammer/Impact Crushers: Roller sleeves have an average service life of over 2 years.

4.Patented Technology: The high chromium manganese steel wear-resistant roller skin (national patent), precise discharge adjustment system (national patent), and roll design (national patent) ensure optimal performance.

Model Categories

The crusher is classified into small, medium, and large models:

1.Small Spring Models?(2PGT series): 2PGT400×250, 2PGT400×400, 2PGT610×400. Hourly output: 2–20 tons. Ideal for small/medium sand plants.

2.Medium Spring Models?(2PGT series): 2PGT750×500, 2PGT800×600. Hourly output: 10–50 tons. Cost-effective for new sand plants.

3.Medium Hydraulic Models?(2PGY series): 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800. Hourly output: 20–80 tons. Higher efficiency and automation.

4.Large Hydraulic Flagship Models?(2PGY series): 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000. Hourly output: 80–400 tons. Designed for large-scale plants with one-click operation.

// Start For Horizontal Slider

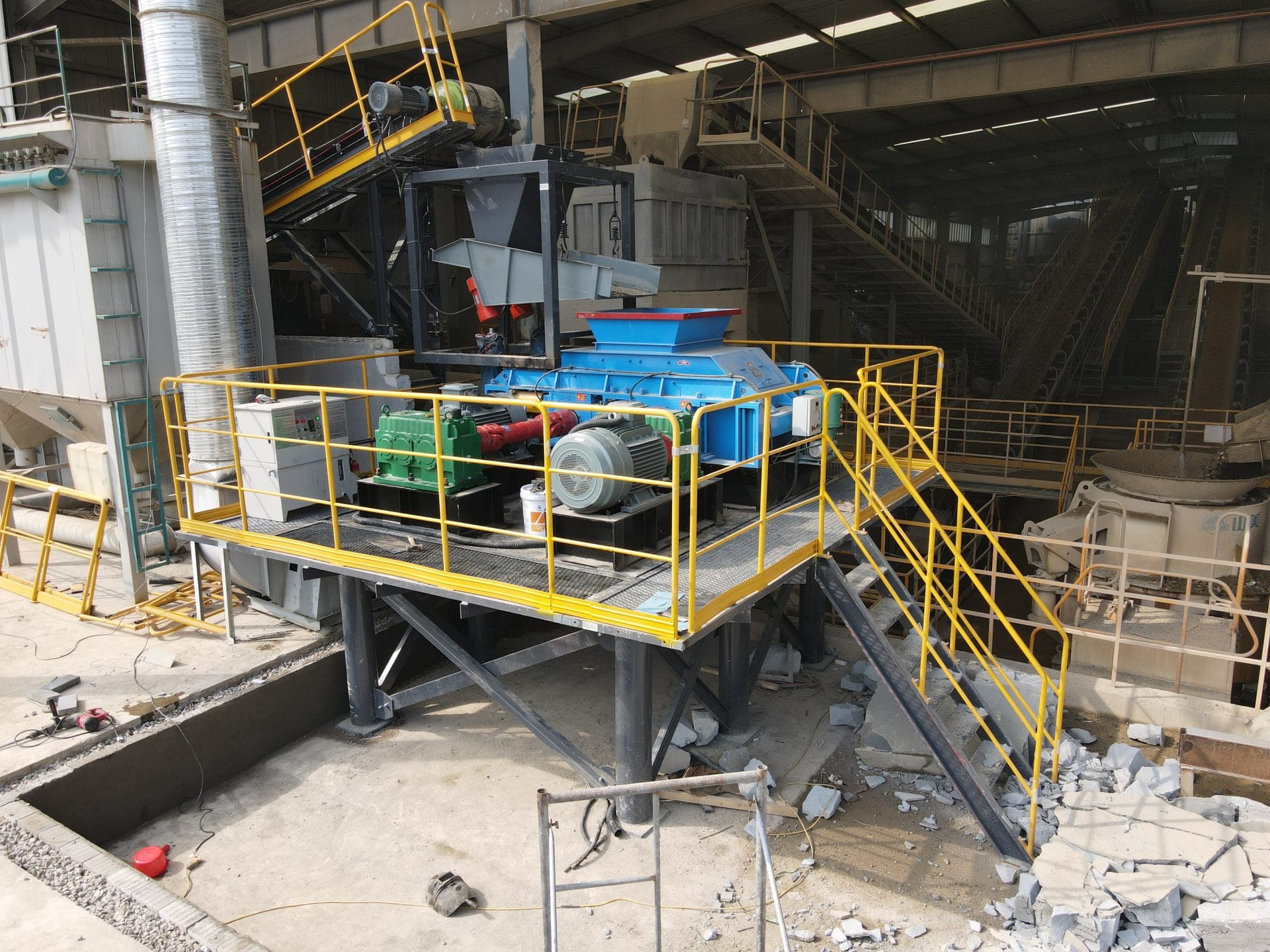

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

The double roll crusher uses two independently driven rollers that rotate in opposite directions, generating extrusion and shearing forces to crush materials. Feed material enters through the inlet, is crushed by the rollers, and discharged naturally. If unbreakable or oversized materials are encountered, the hydraulic cylinders or springs automatically retract the rollers to widen the gap, allowing the material to fall through safely. The discharge size is adjusted by controlling the hydraulic or spring pressure.

Technical parameters

•

•
•
•
