Product description

Sizing teeth roller crusher is used for crushing material from 50-1500mm to 15-300mm, capacity can reach 80-3000t/h. Crushing Strength: <200mpa.

Coal: Raw coal with rock and clean coal sizing.

Construction Materials: Limestone, Gypsum, Marl, Clay

Industrial Materials: Borax, Chalk, Kimberlite, Oil Sands

Mixed/Medium Strength Ores: Gold, Nickel, Silver, Copper

Miscellaneous: Overburden, Coke, Carbon Anodes.

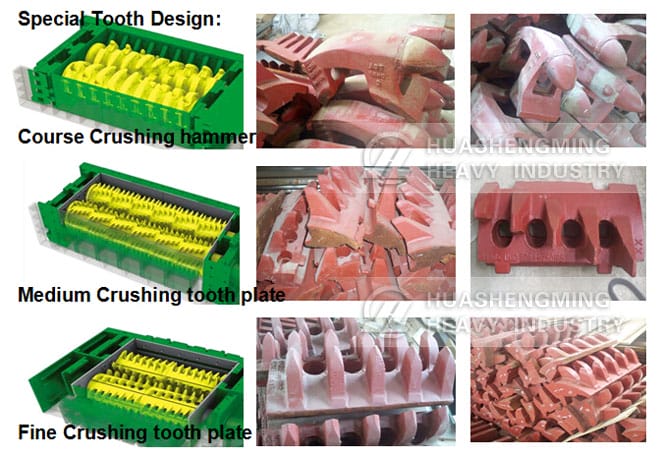

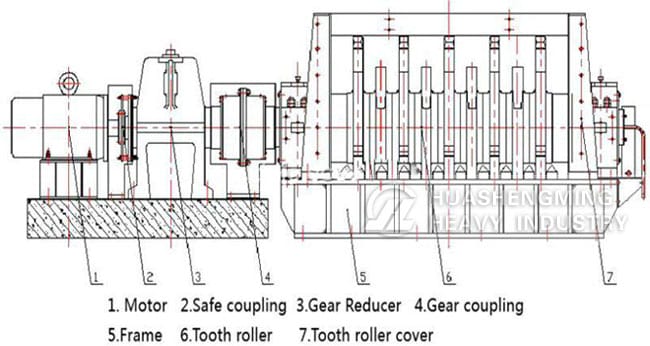

Structures:

The structure of HSM Sizing Teeth Roller Crusher make the output material powder percent very low.

According to the optimum design of crushing tooth shape and tooth layout, the two rollers relative rotation as a grizzly. So as to make the material which size is bigger than request will be crushed and material which meet the size need will be directly pass through. Discharging sizes to be block shape, less fine power, low energy consume.

suitable for more than 200 types hard materials

Small-Scale Gold Ore Crushing Line
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

Sand Production Application
Mineral Processing Crushing Applications

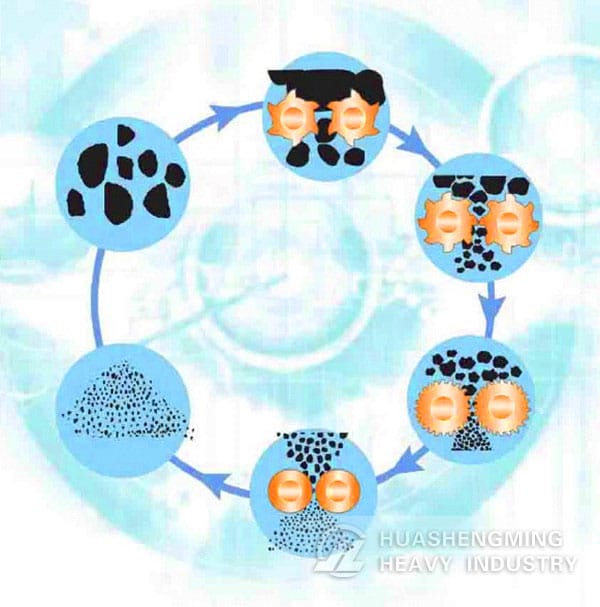

1.material be feed to our crusher machine and begin first screening-screen the material which size no need be broken .

2. the material can’t past the teeth roller will be broken to small size.

3. material finish break and get the finished products you need.

Technical parameters

140?Series?Sizing?Teeth??Roller?Crusher?For?Coarse?Crushing
Model?Specification	2PLF-140/150	2PLF-140/200		2PLF-140/250		2PLF-140/300
Inlet?Size(mm)	≤1500	≤1500		≤1500		≤1500
Discharge?Size(mm)	≤300	≤300		≤300		≤300
Capacity(t/h)	1300-2500	1700-3800		2200-4600		2700-5500
Single?Driven?Type?Motor?Power(kw)	315-355	355-450		400-560		450-630
Dual?Driven?Type?Motor?Power(kw)	2×(185-280)	2×(200-315)		2×(220-355)		2×(250-400)
120?Series?Sizing?Teeth?Roller?Crusher?For?Coarse?Crushing
Model?Specification	2PLF-120/150	2PLF-120/200		2PLF-120/250		2PLF-120/300
Inlet?Size(mm)	≤1200	≤1200		≤1200		≤1200
Discharge?Size(mm)	≤300	≤300		≤300		≤300
Capacity(t/h)	≤1500	≤2000		≤2700		≤3300
Single?Driven?Type?Motor?Power(kw)	315-355	355-450		450-560		560-630
Dual?Driven?Type?Motor?Power(kw)	2×(132-185)	2×(160-220)		2×(185-250)		2×(200-315)
100?Series?Sizing?Teeth?Roller?Crusher?For?Coarse?Crushing
Model?Specification	2PLF-100/160		2PLF-100/200		2PLF-100/250
Inlet?Size(mm)	≤700		≤700		≤700
Discharge?Size(mm)	50-150		50-150		50-150
Capacity(t/h)	280-850		350-1000		500-1500
Single?Driven?Type?Motor?Power(kw)	160-200		160-250		200-315
Dual?Driven?Type?Motor?Power(kw)	2×(90-132)		2×(110-160)		2×(132-200)
80?Series?Sizing?Teeth?Roller?Crusher?For?Medium?Crushing
Model?Specification	2PLF-80/150	2PLF-80/200		2PLF-80/250		2PLF-80/300
Inlet?Size(mm)	≤550	≤550		≤550		≤550
Discharge?Size(mm)	50-150	50-150		50-150		50-150
Capacity(t/h)	200-600	260-750		300-1000		400-1150
Single?Driven?Type?Motor?Power(kw)	132-160	160-200		185-250		250-280
Dual?Driven?Type?Motor?Power(kw)	2×(75-90)	2×(90-132)		2×(110-185)		2×(132-220)
50?Series?Sizing?Teeth?Roller??Crusher?For?Fine?Crushing
Model?Specification	2PLF-50/60	2PLF-50/120		2PLF-50/150		2PLF-50/200
Inlet?Size(mm)	≤300	≤300		≤300		≤300
Discharge?Size(mm)	50-150	50-150		350-150		50-150
Capacity(t/h)	80-240	200-600		250-700		300-800
Single?Driven?Type?Motor?Power(kw)	37	75		90		160
Dual?Driven?Type?Motor?Power(kw)	2×18.5	2×37		2×45		2×75
