Vibrating Feeder

Applicable materials:Feeding the material to crusher continuously which is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry.

Feed size:300-750 mm
Productive capacity:30-450 t/h

Application scope:Feeding the material to crusher continuously which is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry.

get quote
WhatsApp

Product description

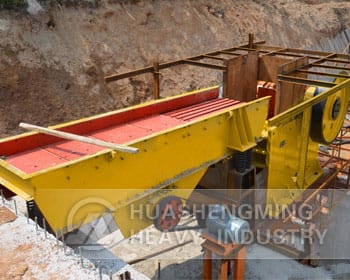

Vibrating feeder machine is used to feeder the material to crusher continuously which is widely used in crushing and screening plants of mining, construction materials, silicate and chemical industry. HSM vibration feeder series can be divided into GZD series and ZSW series.

// Start For Horizontal Slider

suitable for more than 200 types hard materials

Small-Scale Gold Ore Crushing Line
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application
Mineral Processing Crushing Applications

GZD Vibrating feeder series have two engines. Users can adjust vibrating frequency freely to completely control feeding speed of stone material and ensure smooth operation of production line.
ZSW vibrating feeder also linear feeder has features of stable vibration, reliable operation and long service life, can feed crushing machine continuously and has primary sieving on materials.

Technical parameters

Type	Size?of?funnel (mm)	Max.?Feed?lump size?(mm)	Capacity (t/h)	Power (kw)	Weight (KG)	Overall?dimension (mm)
GZD?600*1800	600*1800	300	30-80	1.1*2	1050	22001100600
GZD800*3000	800*3000	400	80-120	1.5*2	3195	311016001600
GZD960*3800	960*3800	500	120-210	2.2*2	3980	385019501630
GZD1100*4200	1100*4200	580	200-430	3.7*2	5570	440020501660
GZD?1100*4900	1100*4900	580	280-500	5.5*2	6520	520020501700
GZD?1300*5200	1300*5200	650	450-600	7.5*2	8200	520023501750
ZSW?960*3800	960*3800	500	90-200	11	3980	388222242121
ZSW?1100*4900	1100*4900	580	180-380	15	5320	495725001365
ZSW?1300*4900	1300*4900	750	250-450	22	5900	495725802083
