Product description

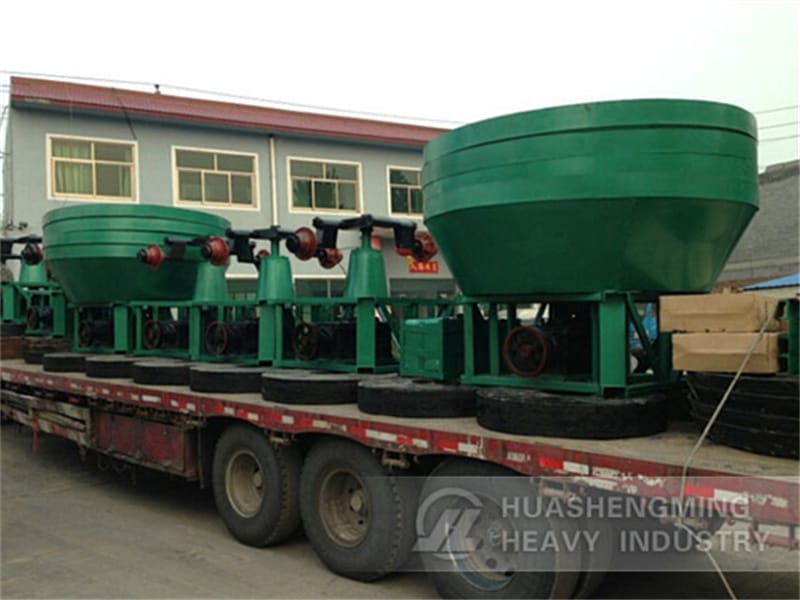

Wet Pan Mill is also called Wet Grinding Machine. Based on the different structure it is divided into double roller grinding and three roller grinding. They are mainly used for grinding operation, such as all kinds of ferrous metal, non-ferrous metal, non-metallic minerals, and the separation of gold, silver, lead, iron, copper and so on.

Wet Pan Mill is the excellent equipment for replacing ball mill, is the first choice of milling equipment for small and medium-sized enterprises.

// Start For Horizontal Slider

suitable for more than 200 types hard materials

Small-Scale Gold Ore Crushing Line
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

Sand Production Application
Mineral Processing Crushing Applications

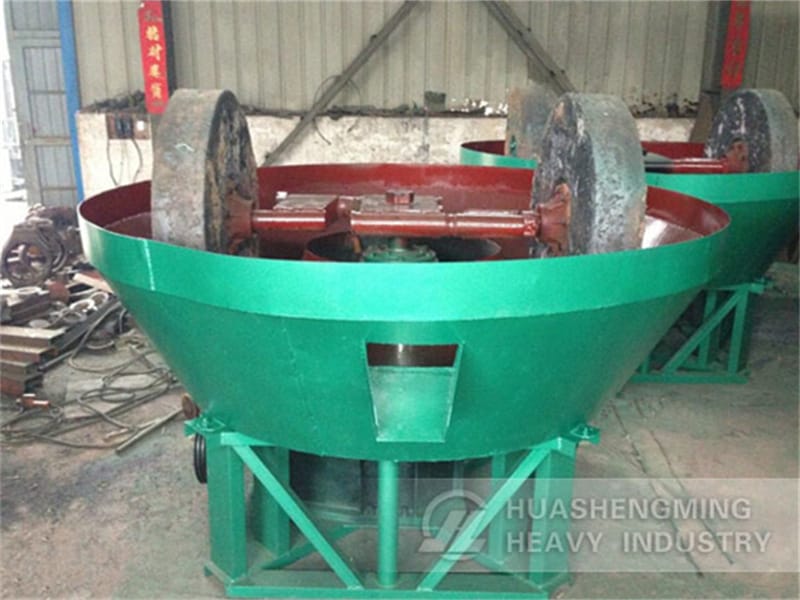

1. Firstly the motor will transmit the motive power to reduction gears,under the drive of reduction gears that passing through large vertical spindle, then the power cabient transfers to above whippletree.

2. The whippletree pulls the two runner wheels clcokwise rotation,runner wheels are not only revoluting around the large vertical spindle but also could retating by themselves.

3. After adding into ore, the materials are under the extrusion of grinding roller weight to revoluting and rotating with runner wheels,when twisting that coming into being huge friction force with grinding base,after suffering repeated extrusion,rub,grinding that be crushed thoroughly.

4. Under the effection of grinding roller operating,the crushed materials and the water mixed intensively to float on it uniformly,then passing through the overflow discharge gate that setting up on the mill basin to discharge,after that enter into next operation procedure to process.

5.Coarse mineral was sank on the bottom of grinding base, going on grinding and crushing,till the fineness could reach to standard floating on it.

Technical parameters

Model	Specification	Input?size (mm)	Rotate?Speed (r/min)	Powder (kw)	Weight (t)
1600A	1600×400×200×500±20mm	<30mm	20-22	25KW	14.5
1500A	1500×350×200×460±20mm		20-22	22KW	13.5
1500B	1500×350×150×460±20mm		20-22	22KW	12.3
1500C	1500×300×150×420±20mm		20-22	22KW	11.3
1400A	1400×250×150×350±20mm		16-18	18.5kw	8.5
1400B	1400×250×150×350±20mm		21-23	18.5kw	8.5
1350A	1350×250×150×350±20mm		16-18	?18.5kw	8
1350B	1350×250×150×350±20mm		21-23	18.5kw	8
1300A	1300×250×150×350±20mm		16-18	15kw	7.5
1300B	1300×250×150×350±20mm		21-23	15kw	7.5
1200A	1200×200×80×250±20mm		17-19	7.5kw	5.5
1200B	1200×200×80×250±20mm		23-25	7.5kw	5.5
1100A	1100×200×80×250±20mm		17-19	7.5kw	5
1100B	1100×200×80×250±20mm		23-25	7.5kw	5
1000	1000×200×80×250±20mm		13-15	5.5kw	4.5
