Product description

? What is Granite Crusher

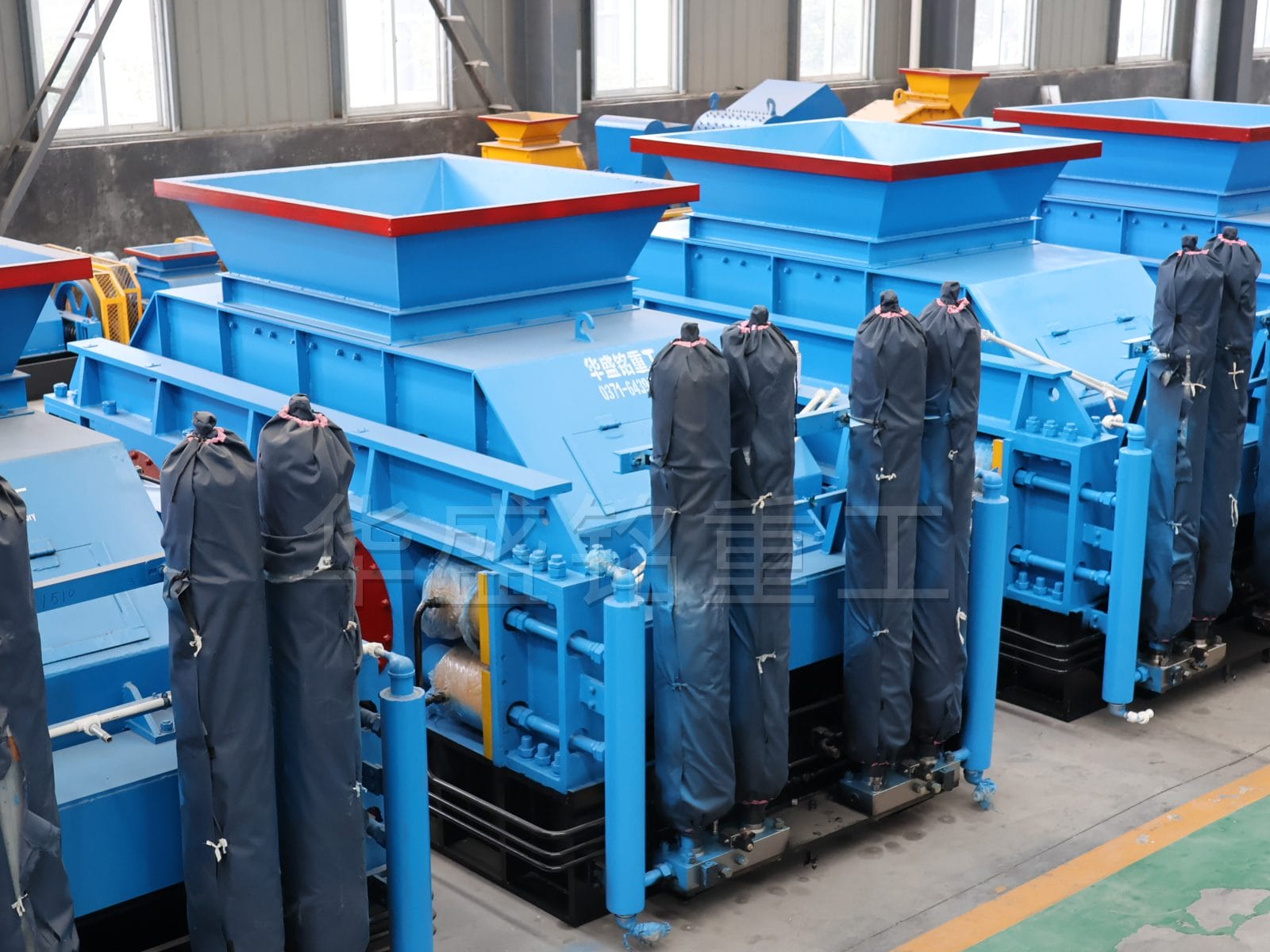

Granite Crusher ,also named as double roller crusher or roller sand making machine, runs by driving two motors and two pairs of rollers to grind the material fed. Double roller crusher can operate crushing material less than 80mm as well as the finished product size 50 mesh-20mm.

Granite is a very hard rock, belongs to the magma rock, after millions of years of crustal movement, exposed to the surface, and some also through water erosion, weathering and other forces of nature formed pebbles, gravel. Granite is a very good building material, hardness, compression resistance, wear-resistant and corrosion-resistant, part of the beautiful pattern, is a good material for decorating countertops, floors. However, natural granite can not be used directly for various reasons, it needs to be crushed by the fine crusher and other equipment after the application.

Reasons for?choosing?us

1. Compared with hammer sand making machine, roller crusher does not need to replace wearing parts.

2. The finished product features pretty shape, well gradation, low over-crushing rate and high output.

3.Roller crusher is superior to hammer crusher and impact crusher, and the average service life ofitsroller sleeve is more than 2 years.

4. Roller skin contains high content of chromium, manganese and other rare metal materials. Adjustable discharge size.

Machine-testing Video

It is suitable for crushing sticky stone material into medium size. Roller crusher utilizes two rollers rotating in opposite direction to crush the material. Which consists of motor, bracket, fixed rollers, movable rollers and springs.

Granite crusher is to use two sets of individually driven rollers to crush materials by squeezing and grinding shear force generated by relative rotation. The material falls into between the two rollers through the feeding port, and the finished products fall naturally after crushed by the roller extrusion. When encountering too hard or unbreakable materials.? The rollers can automatically back off by the action of hydraulic cylinder or spring. So that the gap between the two rollers increases, and the hard or unbreakable materials fall naturally to ensure that the machine is not damaged, and the two rollers rotating in the opposite direction can be adjusted by the pressure of the hydraulic cylinder or spring to control the product's The two rolls rotating in opposite direction can adjust the pressure of hydraulic cylinder or spring to control the granularity of the product.

Granite roller crusher working principle

The granite roller crusher operates through rollers. The Hard rock, put into the machine through the inlet, are crushed by the squeezing between the rollers. The discharge size can be controlled by adjusting the gap between the two rollers. If the gap becomes larger, the discharged size becomes larger. While the gap becomes smaller by compressing spring, the discharge size also becomes smaller.

Product category

granite roller crusher is divided into several kinds: Spring fine crushing sand making machine, cardan shaft drive roller crusher, hydraulic fine crushing sand making machine.You can choose the machine according to your budget and the facts.

Product Model

There are small, medium and large? roller crusher.

1. Small stone roller crusher: 250x250，400x250，400x400，610x400? Production capacity: 2-12 tph

2. Medium roller crusher: 750x500，800x600，800x800，1000x800? Production capacity: 20-50 tph

3. Large roller crusher: 1200x800，1200x1000，1500x800，1500x1000，1500x1200，1800x1200，2000x1000 or larger? Production capacity: 50-400 tph

HSM machines?features different configurations. The sales manager can recommend the proper product to the customers?according?to their facts.





// Start For Horizontal Slider

Sand Production Application

In sand production lines, the double-roll crusher functions as a sand-making machine, offering advantages such as no wear parts, low maintenance costs, adjustable sand particle size, high yield rate, and excellent sand particle shape. It is widely used in the sand-making industry.

Mineral Processing Crushing Applications

In the mineral processing industry, double-roll crushers or high-pressure roller mills are employed for fine crushing operations. Positioned upstream of ball mills, they can reduce 2-3 cm ore particles to less than 1 mm, significantly enhancing the operational efficiency of mineral processing ball mills and boosting overall production productivity.

The? double roller crusher performs crushing operations through rollers. The material enters between the rollers from the feed port and crushes the river pebbles through the extrusion action. There is a certain gap between the two rollers. The larger the gap between the two rollers, the larger the material output size. Under the action of the compression spring, the smaller the gap between the two rollers, the smaller the material output size. By changing the gap, the material output size can be controlled.

Technical parameters

•

•
•
•
