Roller Crusher Roller Maintenance Needs Attention. Maintenance of smooth rolls and toothed rolls in roll crusher requires targeted management based on equipment characteristics, material properties, and operational protocols. Below are critical maintenance considerations and operational recommendations: I. Core Daily Maintenance Guidelines Lubrication Management Smooth Rolls: Lubricate bearings weekly with specialized grease. Apply calcium-based grease to chains every 15 days and perform thorough chain cleaning monthly. Toothed Rolls: Lubricate bearings monthly and replace grease annually. Oil chains weekly and clean them monthly. General Requirements: Ensure lubrication systems remain clean to prevent contamination. Maintain sliding bearing clearance at 0.0001D–0.00015D (where D = journal diameter). Wear Inspection and Adjustment Smooth Rolls: Clean residual material from roll surfaces after each shift and inspect surface smoothness to avoid pitting or scratches. Adjust roller gaps every two weeks to ensure parallelism. Toothed Rolls: Inspect tooth plate wear every 1–3 months; replace plates if tooth height loss exceeds 30% or fractures occur. Adjust discharge openings periodically to prevent overly fine output. Cleaning and Clog Prevention Regularly remove adhered material to avoid crushing chamber blockages (especially when processing clay or construction waste). Stop feeding 2–3 minutes before shutdown to ensure complete material discharge. II. Key Component Maintenance Strategies…
Comparative Analysis of Service Life Between Roller Crushers and Hammer Crushers The following is a comparison of the life span of roll crusher and hammer crusher according to the search results provided by users: 1. Core Component Lifespan Comparison Equipment Type Core Component Typical Lifespan Key Influencing Factors Case Studies & Data Roller Crusher Roller Surface (High-Mn Alloy/High-Cr Mn Steel) 5–8 years – High wear resistance and compressive strength (up to 200 MPa) – Low wear due to compression crushing – Limestone crushing in abuilding materials factory: Roller surface lifespan >5 years, reduced annual maintenance costs by 300,000 CNY – Iron ore crushing: Roller wear 1/3 of hammer wear Hammer Crusher Hammer Heads (High-Mn Steel/High-Cr Cast Iron) 6–12 months – High-speed impact accelerates wear – Linear velocity >40 m/s reduces hammer lifespan by 50% – Chromium slag crushing: Daily hammer replacement required – Andesite processing: Hammer wear 2.8× higher than rollers 2. Overall Equipment Lifespan & Maintenance Costs Roller Crusher: Total Lifespan: Up to 15–20 years, requiring only periodic roller surface replacement (every 5–8 years) and bearing maintenance. Maintenance Advantages: Modular design enables quick part replacement; hydraulic systems auto-adjust roller gaps, minimizing downtime. Case Study: A mining site using roller…
Roller crusher after-sales service details Henan Huashengming Heavy Industry attaches great importance to the quality of after-sales service. We provide services including but not limited to the following: Huashengming Heavy Industry Machinery Factory is a large-scale machinery manufacturing enterprise mainly producing crushing and screening equipment. Our headquarter is located in Gongyi City, the Pearl of the Central Plains, and we mainly have roller crusher equipment, mobile sand making equipment.? Screening equipment and construction waste treatment equipment series of products.Over the years. We have always been consistent and honest to serve every customer. We sincerely look forward to cooperating with you. Transparent sales model, the people trust the enterprise. Years of focus on roller crusher production and manufacturing, quality for the day. Honesty and far-reaching, the people’s conscience production enterprise. Rapid response: Once the customer encounters any problem. Huashengming Heavy Industry immediately arranges a professional team to provide remote guidance or on-site support to ensure that the problem is solved in time. Regular return visit: In order to better understand the use of customers, the manufacturer conducts regular telephone or field return visits to collect feedback information and continuously improve products and services. Training services: For new purchasers of equipment, we…

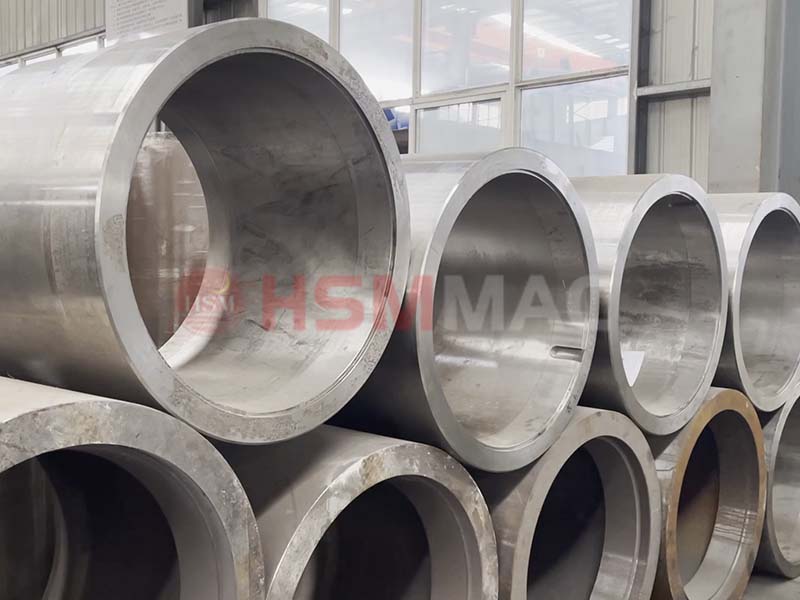

What Are The Conditions That Roll Crushers Need To Replace Roll Skins? Roller crusher wear parts roll skin replacement standards need to be integrated wear level, equipment operating status and production results and other aspects of judgement, the specific criteria are as follows: Roller skin wear degree 1. Thickness reduction: when the roll skin wear reaches 20%-30% of the original thickness, it needs to be replaced. For example, the original thickness of 100mm roller skin, the remaining thickness of less than 70-80mm should be considered for replacement. Some manufacturers recommend measuring the remaining thickness below the minimum allowable value (such as 60mm) need to be scrapped. 2. Surface damage: If the surface of the roll skin has obvious depression, cracks, flaking or hardened layer off, it should be replaced in time. Such damage will lead to uneven crushing of materials and accelerate the wear of equipment. Decrease in production efficiency and quality of roll crusher 1. Decrease in crushing effect: If the particle size of the material is uneven, dust increases or the output decreases significantly (e.g. the output decreases by more than 20%), it indicates that the roll skin is worn out seriously and needs to be replaced. 2….
Is the roll skin of a roll crusher wear-resistant? The wear problem of roll skin of roll crusher can be effectively solved by the following comprehensive solutions.? Covering material selection, design optimisation, operation specification and maintenance technology to prolong the service life. Roller crusher with wear-resistant alloy steel roll skin The rolls of the roll crusher of Huashengming Heavy Industry adopt special wear-resistant alloy steel casting, such materials have high hardness and strong impact resistance, which prolongs the service life of the rolls. For high hardness materials (such as river pebbles, quartz sand), it is necessary to target the selection of materials that match the characteristics of the material. Optimise the shape and thickness of the roll surface to reduce local stress concentration; adjust the roller gap and the shape of the crushing chamber to improve crushing efficiency while reducing wear; adopt symmetrical feed opening design to ensure even distribution of materials and avoid partial grinding. Uniform feeding and parameter adjustment Installation of dispersing device to control feeding speed and particle size to avoid overload operation; Dynamic adjustment of roll speed.? Pressure and gap through intelligent system to adapt to different material characteristics. Avoid improper operation, idle at start-up before…
Optimising the operation of the roller sand making machine to improve the rate of finished products requires a comprehensive approach from the adjustment of equipment parameters, material management, maintenance and intelligent control and other aspects. The following are specific optimisation measures and technical points: 1. Precise regulation of equipment parameters Roller clearance and pressure adjustment Roller gap directly affects the particle size distribution of the material. By adjusting the gap size, the degree of material crushing can be controlled to avoid excessive crushing or insufficient crushing. For example, too small a gap can lead to over-crushing of the material, increasing the proportion of powder; too large a gap may reduce the yield. Combined with hydraulic or spring pressure regulating system (e.g. 11-18MPa pressure adjustment of Yuhui Heavy Industry equipment).? It can adapt to different hardness materials and balance the crushing efficiency and finished product quality. Match the rotating speed with the feeding quantity The speed of rollers should be dynamically adjusted according to the hardness and size of materials. High speed may increase the output but it may lead to poor grain shape (e.g. more needles and flakes), while low speed may reduce the efficiency.? At the same time, the…
How to adjust the roll gap of roll crusher is the key operation to control the granularity of the material and ensure the efficient operation of the equipment, according to the market common 3 different structure types of roller crusher, mainly through the following methods to achieve: 1、Wedge device adjustment Change the position of the wedge by rotating the adjusting bolt: Increase the gap: Pull up the wedge block, the movable roller is pushed away from the fixed wheel, and the granularity of the discharged material becomes larger. Decrease the gap: the wedge block moves downward, the spring presses the movable roller, the gap is reduced, and the grain size of the discharged material is finer. 2、Adjustment of gasket Increase or decrease the shims between the frame and the movable bearing: Increase shims: the gap between two rollers increases, suitable for coarse grain size demand. Decrease shims: the gap is reduced, the material is finer. This method requires downtime operation, and the bolts need to be re-tightened and tested after adjustment. 3、Hydraulic adjustment method (applicable to fully hydraulic roller crusher) Adjust the distance between two rolls directly through the hydraulic system control panel, real-time display of values, higher precision. Steps:…
The main maintenance cost components of the Double-Roll Crushers include replacement of worn parts, lubrication, manual inspection, and downtime losses. How to reduce the maintenance cost of the roller crusher? The maintenance costs of double-roll crushers primarily consist of the following components, each requiring targeted management for cost optimization: I. Replacement of worn parts of the roller crushing mechanism key (50%–65% of Total Costs) Roll Surface Wear Layer Material Options: High-chromium cast iron roller sleeves (service life: 500–800 hours) or tungsten carbide-sprayed coatings (service life: 1,500–2,000 hours). Cost Range: Single roller replacement costs approximately ￥30,000–200,000, depending on roller diameter and material. Bearing Assemblies Heavy-Duty Roller Bearings: e.g., SKF 223 series; replacement cost ~￥120,000–350,000/set, with a lifespan of 2–3 years (with regular lubrication). II. Lubrication and Sealing Systems (8%–12%) Grease Consumption Automated Greasing Systems: Annual consumption of NLGI Grade 2 lithium grease: 1.5–3 tons, costing ~￥15,000–30,000. Seal Replacement Labyrinth Seals: Replaced every 6–12 months, unit cost ￥2,000–5,000, to prevent dust ingress into bearings. III. Drive System Maintenance for Double-Roll Crushers? (15%–20%) Gear Reducer Maintenance Planetary Gearbox Overhaul: Required every 8,000–12,000 hours, costing ￥60,000–150,000. Coupling Alignment Laser Alignment: Annual calibration cost ~￥5,000–8,000, reducing vibration-induced wear. IV. Structural Repairs and Fastening for Double-Roll…

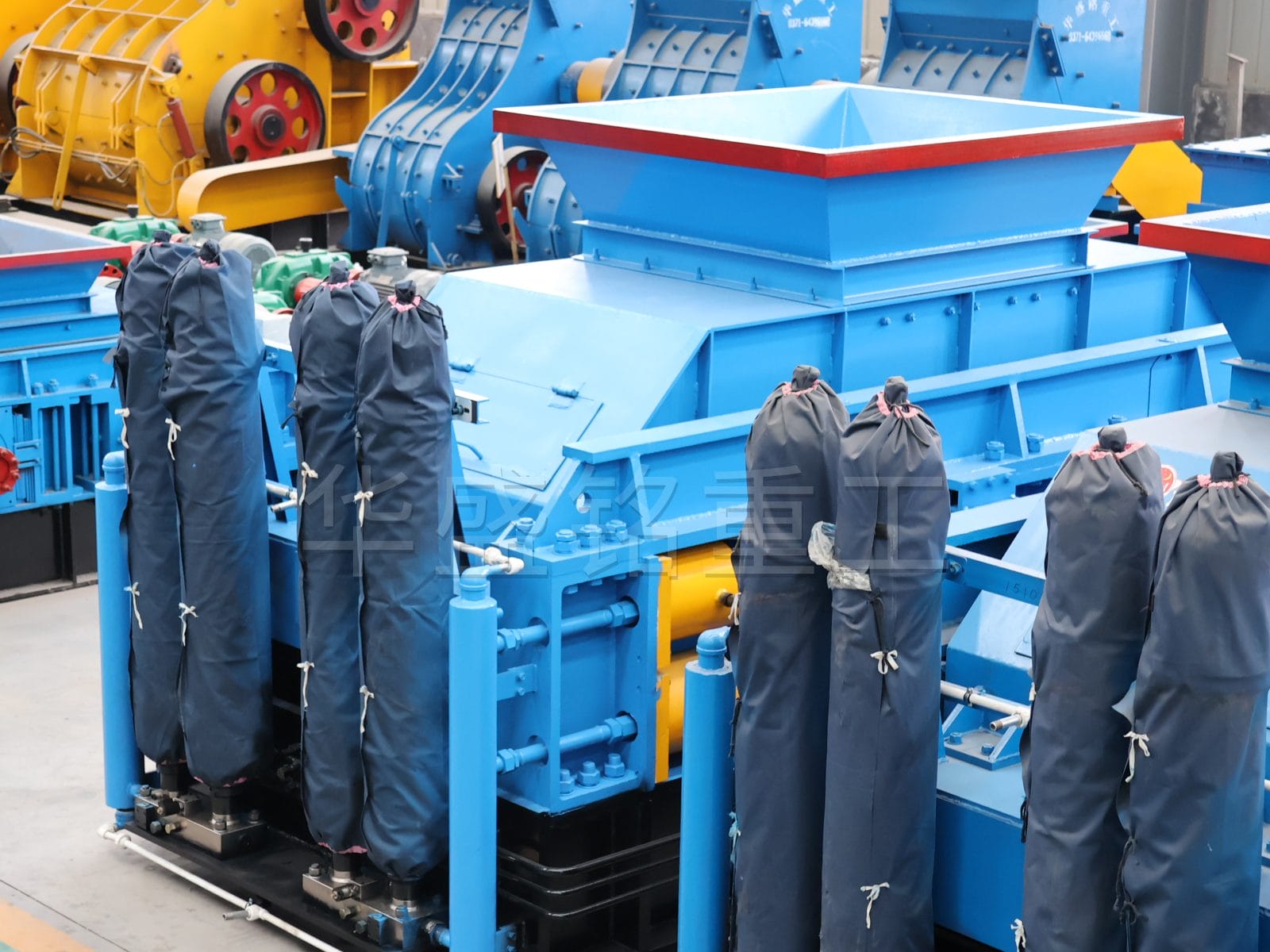

As an outstanding representative of modern crushing technology, the hydraulic double roller crusher cost combines the advantages of hydraulic technology and traditional roller crushers and is widely used in mining, metallurgy, building materials, chemical industry and other industries. Its core lies in using the hydraulic system to adjust and control the pressure and gap of the rollers to achieve an efficient and stable material crushing process. Advantages of hydraulic double roller crusher products: Intelligent control: The frequency conversion control can automatically adjust the distance between the rollers according to the material properties and crushing requirements to achieve precise crushing. Overload protection: When encountering materials with excessive hardness, the hydraulic system can automatically adjust the distance between the rollers to avoid equipment damage and ensure safe operation. High crushing efficiency: Continuous crushing action and reasonable crushing chamber design ensure high output and uniform discharge particle size. Convenient maintenance: The structural design facilitates daily inspection and maintenance, reduces downtime and reduces maintenance costs. Double roller crusher Wide application: It can handle materials of various hardness, from soft to hard, with wide adaptability. As a well-known domestic mining machinery production base, Gongyi City has a rich range of hydraulic roller crusher models covering…

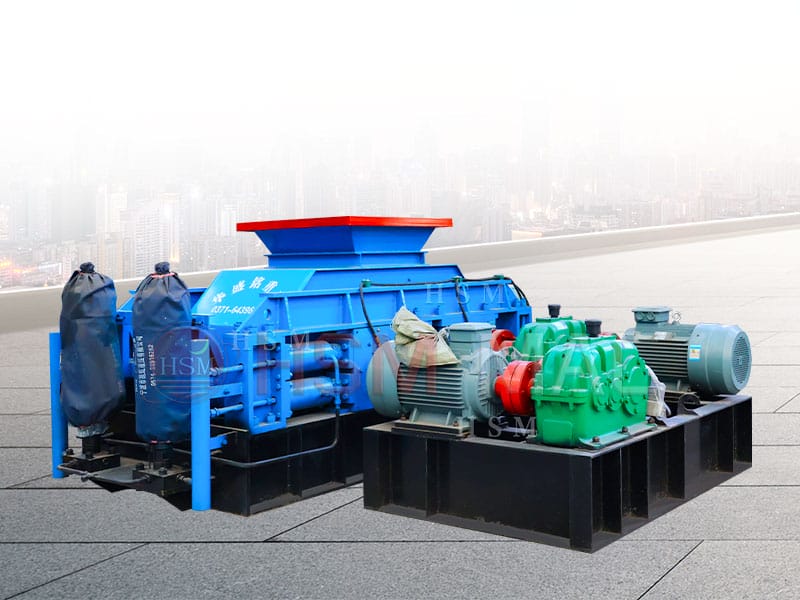

If you seek an efficient crushing solution, Huashengming Heavy Industry’s roller crushers offer unmatched performance for size reduction. Our advanced double roller crushers efficiently break down materials like coal, limestone, and ores, delivering reliable results every time. Key Benefits of Huashengming Roller Crushers: High Crushing Efficiency: Huashengming roller crusher use advanced double roller technology to achieve superior crushing performance, efficiently breaking down materials like limestone, coal, and ores. Consistent Product Size: With adjustable roller gaps, our crushers ensure uniform output size, catering to your exact specifications without the need for secondary crushing. Durable and Long-lasting: Built with high-quality wear-resistant materials, Huashengming roller crusher are designed for long-term operation, even in the toughest environments. Low Dust and Noise Emissions: Our crushers operate quietly and with minimal dust generation, making them environmentally friendly and reducing the need for dust control measures. Energy Efficient: Designed to reduce energy consumption, Huashengming roller crushers minimize operational costs while maximizing productivity. Versatile Applications: Whether you’re working with limestone, coal, sand, or other materials, our double roller crushers are flexible and can handle a wide range of materials with ease. How Double Roll Crushers Achieve Size Reduction Our double roll crushers use compression to reduce material size….
The double roller limestone sand making machine processes limestone sand by squeezing and shearing materials between counter-rotating rollers. This machine efficiently crushes medium-hard stones like limestone, ensuring controlled discharge size and uniform crushing. The equipment’s compact structure, easy operation, and low energy consumption make it popular for fine crushing in industries like building materials, mining, and chemicals. Complete models Huashengming produces a variety of limestone sand making machine to meet the needs of large and small sand plants: 1. 2PGT400×250, 2PGT400×400, 2PGT610×400, with an output of about 2-20 tons per hour, are small spring roller sand making machines, suitable for investment in small and medium-sized sand plants. 2. 2PGT750×500, 2PGT800×600, with an output of 10-50 tons per hour, are medium-sized spring roller sand making machines. This model is suitable for new sand plants with low investment costs. 3. 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800, with an output of 20-80 tons per hour, are medium-sized hydraulic roller sand making machines. Hydraulic models are more intelligent, have higher output, and save costs. 4. 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, 2PGY2000×1000, with an output of 80-400 tons per hour, belong to the large flagship series of CNC hydraulic roller sand making machines, suitable for medium and large…
The Limestone High Pressure Roller Mill features a simple structure and reliable performance, making it ideal for fine and ultra-fine crushing. It controls the fineness modulus effectively. Huashengming designed this mill with the market’s demand for crushing hard materials in mind. Compared to other high pressure roller mills, this model significantly boosts crushing capacity. It works well for hard and medium-hard materials with compressive strength below 250MPa and humidity under 10%. These materials include river pebbles, coke, coal, ceramic raw materials, quartz, limestone, shale, chalk, bricks, slag, clinker, feldspar, gypsum, salt, and other solid materials. The main body consists of two rollers that rotate in opposite directions. The conveying equipment feeds brittle material into the weighing bin, which contains a weighing sensor. The feeding device then moves the material into the gap between the two rollers. The rollers pull the material into the gap, where they press it into a dense material cake. The material cake falls from the gap and exits through the discharge hopper, where the conveying equipment carries it away. In the next stage, the material cake undergoes further dispersion or grinding. Product features of limestone high pressure roller mill 1. The hydraulic system makes it…
